Optical Accessory Products
-
- FDF(12 core, 24 core, 48 core)
-
- MINI FDF 4C, 8C
FDF (Fiber Distribution Frame)
Specifications
Parameters |
Unit |
FDF-1U |
FDF-2U |
FDF-3U |
FDF-MINI-8(4) |
Fiber Capacity |
Core |
≤24 |
≤48 |
≤72 |
≤8(4) |
Number of Tray |
Set |
1 |
1 |
4 |
1 |
Dimension |
Height |
mm |
1U |
1U |
3 |
35 |
Width |
mm |
482 |
482 |
482 |
140(110) |
Depth |
mm |
305 |
305 |
305 |
190(135) |
REMARK |
|
RACK |
RACK |
RACK |
WALL |

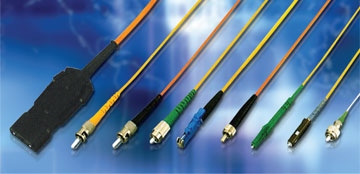

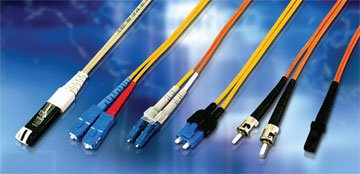

Optical Fiber Patch Cord
Applications
- Telecommunication Networks
- Local Area Networks
- CATV Networks
- Active Device Termination
- FTTx
FEATURES
- Low excess Loss & High Performance
- Retractable splicing tray
- Convenience and ease of handling
- Compliant with JISC-5973, IEC
- Customized assemblies available include of lenths,
connected styles and performance (SC, ST, FC, LC...)
- Low cost
Characteristics |
Conditions |
Value |
Min |
Typ |
Max |
Insertion Loss |
|
|
0.15 |
< 0.40 |
Return Loss |
SPC |
40 |
45 |
|
UPC |
50 |
55 |
|
APC |
60 |
65 |
|
Durability |
1,000 matings |
|
|
< 0.20 |
Temperature Cycling |
-40℃ ~ +80℃ |
|
|
< 0.20 |
Humidity Cycling |
75℃, RH 95% |
|
|
< 0.20 |
Vibration |
10~ 55Hz[3Axis] |
|
|
< 0.20 |
Impact |
1.5m drop, 8 cycles |
|
|
< 0.20 |
