Description

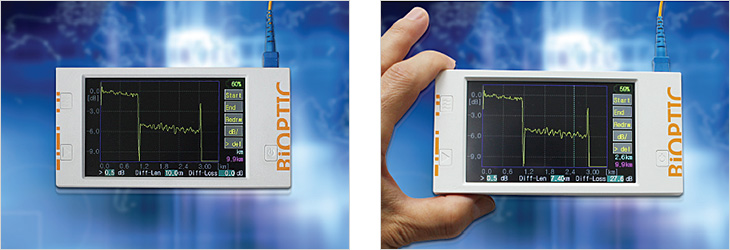

Hand held units can test length (Max 10km), locate event on fiber cables precisely.
It is really the tool of choice for FTTX application.

Features

• Graphic display of fiber loss and fault
• Handheld type small size
• Easy to use
• Low power consumption

Easy to Use Buttons

Specifications

Measurement lenght	10km
Distance Resolution	5m
Dynamic Range	10dB
Loss Resolution	0.1dB(Typ)
Wavelength	1,310nm
Connector Type	SC/PC
Fiber Type	MM, SM
Display	LCD(Touch panel)
Battery Type	3.7V lithium-ion
Size (WXHXD)	140 x 70 x 20 (mm)
Weight	< 180 (g)
Operating Temp	10~40 (℃)
Storage Temp	-40~85 (℃)
Auto Power Off	≒ 10min
EMI Certificate NO	MSIP-REM-BIE-3F-10
