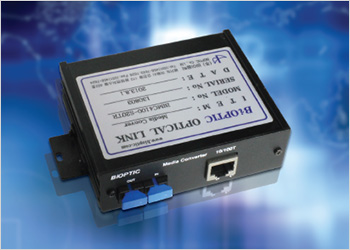

10/100-lXto 100-FX Fast Ethernet Converter BIMC 4000

Features

• Compliant with IEEE802.3.10Base-T and IEEE802.3U 100 Base-TX，100 Base-FX Ethernet Standards
• Extended fiber optic distance up 120 km
• Auto-negotiation for 100 Base-TX Half-Duplex or 100 Base-TX Rjll-Duplex
• Provide Diagnostic LED Indications
• LLCF (Link Loss Carry Forward)
• LLR (Link Loss Return)
• Supports auto MDI/MDI-X Rjnctiᄋn on RJ-45 port

Specifications

Technology

Standard	IEEE 802.310Base - T Ethernet
Standard	IEEE 802.3U 100Base - TX/100Base-FX
RJ45 Ports	1x 10/100 Base T(x), Auto-negotiation, Auto MDI/MDI-X UTP/STP Cat.3,4,5,6 Cable EIA/TIA568 100-0hm

Interface

Fiber Ports	1x 100Base -FX (SC Connector) Single Mode ： 9/125 (~120km), 20km
LED Indicators Per Unit	Power per port (TX) ： Link, Activity, FDX/HDX Speed per port (FX) ： Link, Activity
Dip Switch	Internal, Auto-negotination, 10/100 Mbps, Full/Half Duplex, LLCF on/off

Performance

Data Transfer	100 Mbps
Temperature	Operation ： 0°C ~ 60°C / Store ： -20°C ~ 70°C
Humidity	10% ~ 90%

Power Supply Mechanical

Input Voltage I	DC 7.5V ~ 12V, 1A (Max)
Dimension	100 x 80 x 30mm (WxDxH)
Weight	< 0.3 kg
