BDVDD4300 Series

General Information

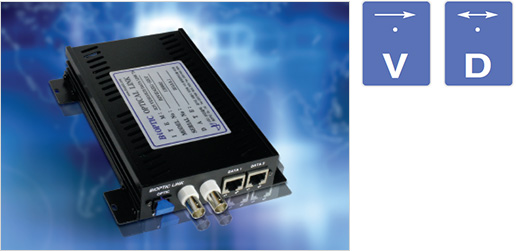

BiOPTIC's Video link Converts Video Signal from camera video signal transmits up to 120 km.
It has the function of digital Max/Demux, so various combinations of signals and Multi-channel can be transmitted via on core of fiber line only.

• Multi-channels video 1/2/4 ch & diverse distances (up to 120 km) are available
• Module, standalone (panel), Card Type for 3U height chassis & 1니 Rack Type

APPLICATION

• CCTV, ITV, and ITS
• CATV System
• Security System
• Process Control System
• Monitoring System

Features

• Transmits Video, Data over 1 Fibers
• Supports RS 232,2 wire or 4 wire RS 422/485
• Power, Video, Data In/Out Fiber Status Sign on LED
• Video Input with AGC(Automatic Gain Control)
• Low power consumption
• Module, Standalone(Panel)，Card Type

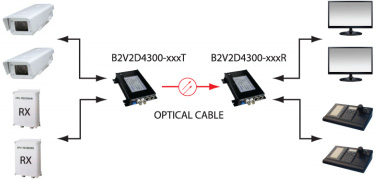

System Diagram

Specifications

Video

• Channel (Unidirection)
• Digital Modulation
• 5Hz ~ 10MHZ Bandwidth (-3dB)
• 1 Vp-p (75Ω) Composite (NTSC, PAL, SECAM) In/Out Signal
• < 2% Differential Gain
• < 2° Differential Phase
• >60dB Signal to Noise
• BNC Connector

Data

• Channel (Biᅵdirection)
• Digital Modulation
• > 100kbps Data rate
• RS-232, RS-422, RS-485 Data Interface
• < 10~9 Bit error rate
• RJ-45 connector

Optical

• 1310,1550 nm Wavelength
• Multi-Mode / Single Mode Fiber
• SC Connector
• 1 Number of Fiber

Power / Environment

• DC 7.5V-12V Input Voltage
• 700mA Input Electric Djrrent
• -20°C ~ 70°C Operating Temperature
• -40°C ~ 85°C Storage Temperature
• 0%~90%
• 100 x 160 x 30 (W x D x H )mm Dimension
• < 0.3 kg Weight

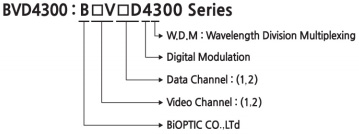

Order Information
