BDV4100 Optic Video Links

General Information

BiOPTIC's Video link Converts Video Signal from camera video signal transmits up to 120 km.
It has the function of digital Max/Demux, so various combinations of signals and Multi-channel can be transmitted via on core of fiber line only.

  • Multi-channels video 1/2/4 ch & diverse distances (up to 120 km) are available
  • Module, standalone (panel), Card Type for 3U height chassis & 1니 Rack Type

APPLICATION

  • CCTV, ITV, and ITS
  • CATV System
  • Security System
  • Process Control System
  • Monitoring System

Features

  • Transmits Video over 1 Fibers
  • Low Power Consumption
  • Module, Standalone(Panel), Card Type
  • Video Input with AGC(Automatic Gain Control)
  • Power, Video, Video Channel. Fiber Status on LED

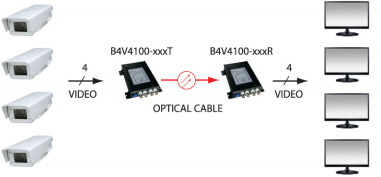

System Diagram

System Diagram

Specifications

Video
  • 1,2,4 Channel (Unidirection)
  • Digital Modulation
  • 5Hz ~ 10MHZ Bandwidth (一3dB)
  • 1 Vp-p (75Ω) Composite (NTSC, PAL, SECAM) In/Out Signal
  • < 2% Differential Gain
  • < 2° Differential Phase
  • >60dB Signal to Noise
  • BNC Connector
Optical
  • 1310,1550 nm Wavelength
  • Multi-Mode / Single Mode Fiber
  • SC Connector
  • 1 Number of Fiber
Power / Environment
  • DC 7.5V-12V Input Voltage
  • 700mA Input Electric Djrrent
  • -20°C ~ 70°C Operating Temperature
  • -40°C ~ 85°C Storage Temperature
  • 0%~90%
  • 100 x 160 x 30 (W x D x H )mm Dimension
  • < 0.3 kg Weight

Order Information

Digital Modulation Video Channel (1,2,4) BiOPTIC Co.,LTd
